ConnectCode MICR CMC7 Font

ConnectCode CMC7 is a Magnetic Ink Character Recognition font based on the CMC-7 (ISO 1004) industry standard. This is a widely accepted standard throughout Europe, South America and many other countries. This character set comprises of ten numbers (0..9), five special symbols and twenty-six letters.



Download Now    Purchase    Brochure


Using the MICR CMC7 Font

When using the MICR CMC7 font, set the font name to CCodeCMC7 (or CCodeCMC7T for the Trial) and choose 12 points for the font size. Enter 0 to 9 for the numeric digits, lowercase 'a','b','c','d','e' for the special symbols and 'A'..'Z' for the alphabet characters.

The character mapping is shown below :



Font Dimensions

ConnectCodeCMC7 font supports all the four heights specified in the ISO 1004 specifications. The following table shows the different dimensions supported.

Font File Font Name Height (MM) Height (Inches)
ConnectCodeCMC7I CCodeCMC7I 3.20 0.126
ConnectCodeCMC7II CCodeCMC7II 3.00 0.1181
ConnectCodeCMC7III CCodeCMC7III 2.85 0.1122
ConnectCodeCMC7IV CCodeCMC7IV 2.70 0.1063

Security Fonts

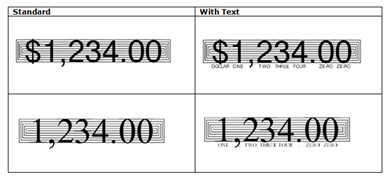

ConnectCode MICR CMC7 package provides additional value by including 4 professional security fonts (in the SecurityFonts subdirectory) to print payee names and check amounts securely. Users can choose from the standard form or a form with text printed below each character. The Security Fonts help prevent alteration and forgery.



Platforms Supported

Available for use on Windows, macOS, and Linux
